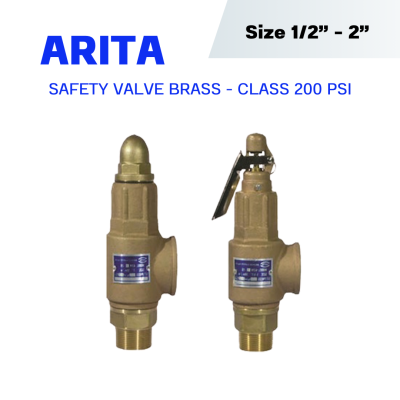

TNSPARTSTHAI จัดจำหน่าย วาล์วอุตสาหกรรม Safety valve เซฟตี้ วาล์ว ยี่ห้อ อริตะ (Arita valves) แบบมีด้าม/ไม่มีด้ามจับ รุ่น BSV-VL, BSV-VNL, BSV-ML ชนิดวาล์วทองเหลือง การเชื่อมต่อเกลียว (Screwed end) มีขนาดตั้งแต่ 1/2" ถึง 2" นิ้ว BSPT
Brass Safety valve, BSPT, Class 200 PSI
Model: BSV-VL, BSV-VNL, BSV-ML
Specification Standards:
- Design for durability
- Compact affortable alternative for air, steam, gas, water, oil, etc under 150 PSI
- Available in Size 1/2", 3/4", 1", 1.1/4", 1.1/2", 2" นิ้ว BSPT (DN15, DN20, DN25, DN32, DN40, DN50)
- Ideal overpressure protection for steam boiler, sterilizers, distillers, cookers, piping system & unfired pressure vessels
Features:
- Screwed end BSPT connection
- Full port
- Screwed body cap
- Spring loaded
- Stainless steel spring
Application:
- For general and industrial services
- Applicable medium: water, oil, & non-corrosive and non-combustible gas, steam
Note:
- Material's table refer to the lever type
- Maximum working pressure 10 Bar
Parts /Materials /Test Requirements
| Bonnet | C83600 (Brass) |
| Spindle | SS304 |
| Ring pull | SS304 |
| Nut | SS304 |
| Fixed nut | CW617N (Brass) |
| Lever | SS304 |
| Adjust screw : | CW617N (Brass) |
| Fixed nut | CW617N (Brass) |
| Screw | SS304 |
| Spindle | CW617N (Brass) |
| Spring | SS304 |
| Body | C83600 (Brass) |
| Spring seat | CW617N (Brass) |
| Disc | Brass/VITON |
| Buffer | CW617N (Brass) |
| Gasket ring | PTFE |
| Seat | CW617N (Brass) |
| Working Pressure | 150 PSI (10 Bar) |
| Maximum Pressure | 232 PSI (16 Bar) |
| Shell Test Pressure | 300 PSI (21 Bar) |
| Applicable Temperature | < 150 °C |
